Waste Water Treatment Stainless Steel Lifting Device 100kg-200kg

Waste Water Treatment Stainless Steel Lifting Device 100kg-200kg

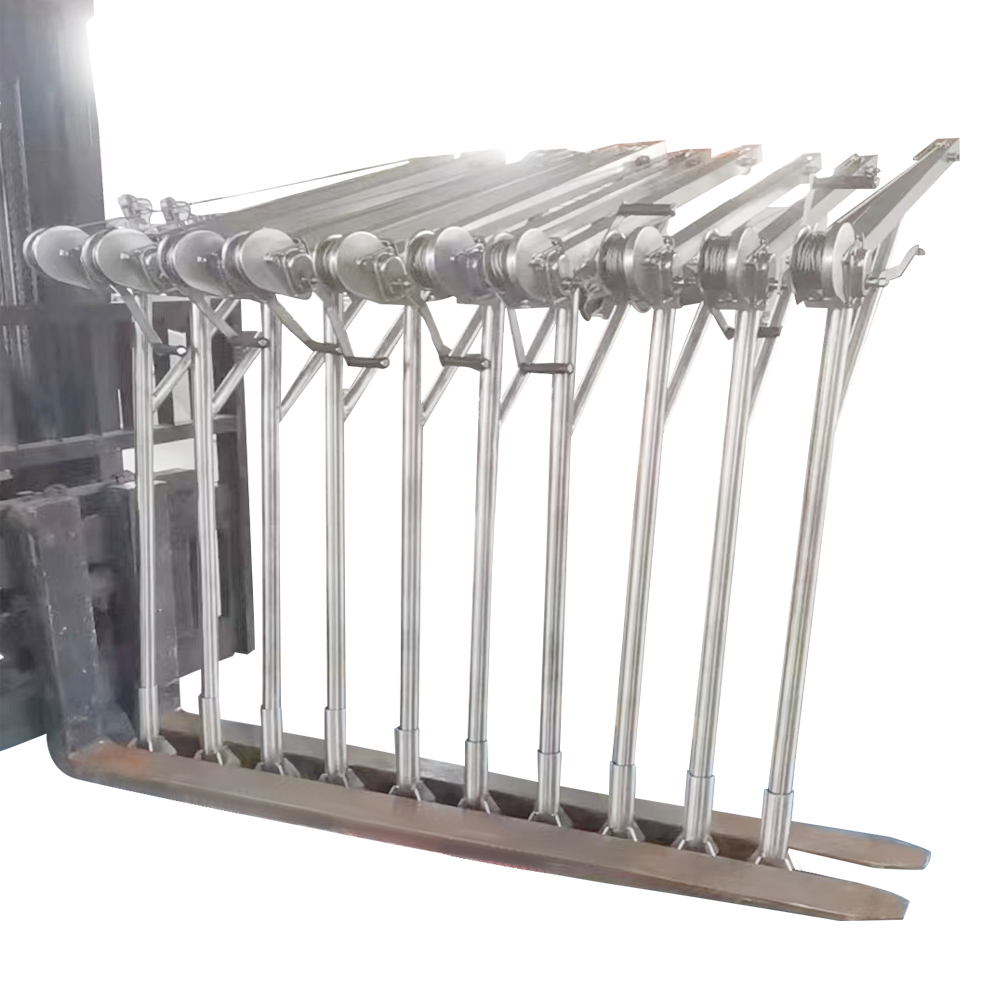

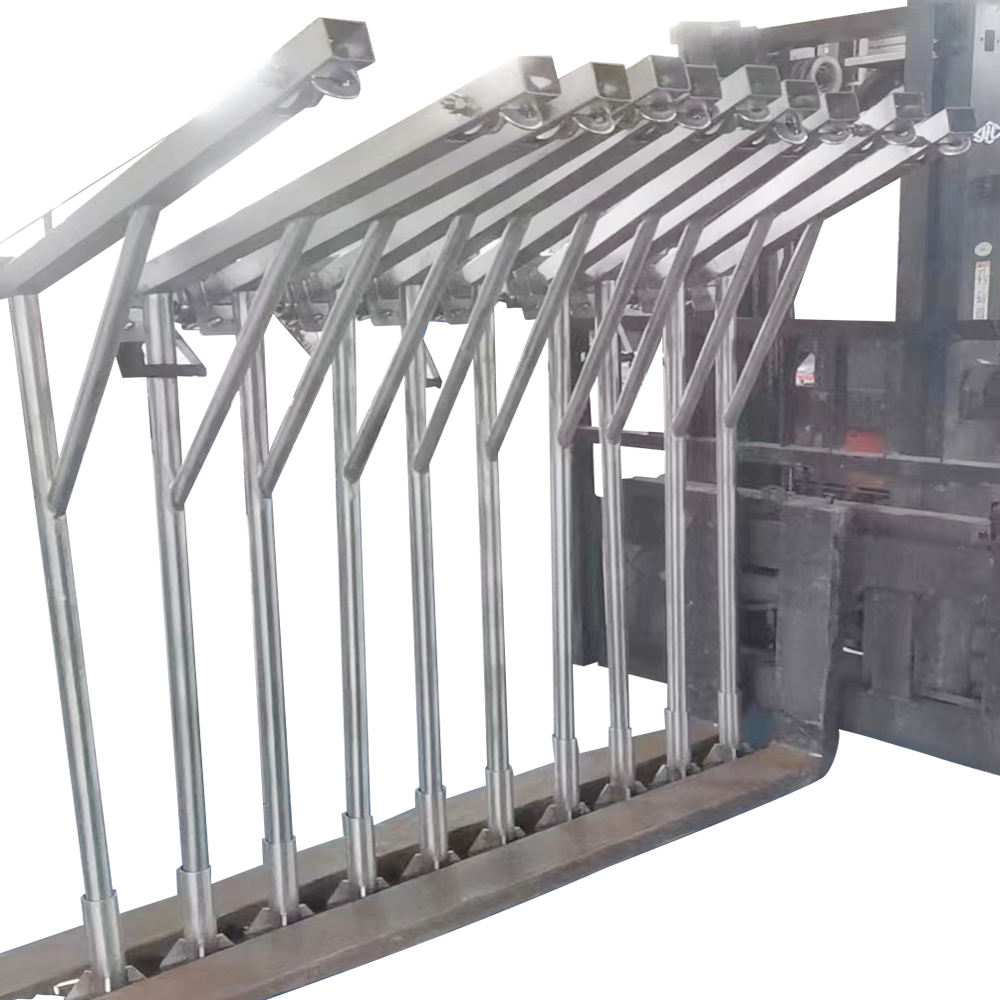

The Waste Water Treatment Stainless Steel Lifting Device 100kg-200kg is a specialized mechanical assembly engineered for the vertical transport and positioning of submerged equipment, such as submersible mixers, pumps, and aeration units within corrosive fluid environments. Constructed from high-grade stainless steel alloys, this lifting system manages loads within the 100kg to 200kg range, providing a structural interface between the basin surface and submerged hardware. It integrates a support bracket, a manual or motorized winch mechanism, and a guide rail connector to facilitate equipment maintenance without dewatering the treatment tanks.

Core Advantages

• Corrosion Resistance: The use of stainless steel (typically AISI 304 or 316) ensures structural integrity when exposed to hydrogen sulfide, chlorides, and varying pH levels common in industrial and municipal wastewater.
• Operational Safety: The manual winch includes an automatic friction brake to prevent uncontrolled descent of the load, ensuring operator safety during equipment retrieval.
• Modular Configuration: The system allows for adjustable arm lengths and 360-degree rotation, enabling precise alignment with the guide rails of submerged machinery.
• Maintenance Efficiency: Enables a single technician to lift and inspect submerged components, reducing downtime and labor costs associated with plant maintenance.

Product Specifications and Features

Primary Application Scenarios

• Municipal Wastewater Plants: Lifting submerged pumps and mixers in anaerobic, anoxic, and aerobic tanks.
• Chemical Processing Facilities: Managing equipment in neutralization basins containing aggressive chemical residues.
• Pumping Stations: Routine extraction of submersible pumps for seal and impeller inspections.
• Industrial Effluent Treatment: Deployment in food processing or textile wastewater systems where sanitation and material durability are required.

Operational and Maintenance Guidelines

Safety Precautions

• Load Monitoring: Do not exceed the specified 200kg maximum capacity to prevent stress fractures in the davit arm or support base.
• Regular Inspections: Periodically check the stainless steel wire rope for fraying, kinking, or chemical pitting.
• Lubrication: Apply grease to the winch gears and swivel bearings every six months to ensure smooth mechanical movement.

Installation Notes

• Base Anchoring: The device must be secured to a reinforced concrete edge using stainless steel expansion bolts or chemical anchors to manage the cantilevered torque.
• Vertical Alignment: Ensure the lifting cable is perfectly aligned with the guide rail system to avoid lateral friction during the lifting process.
