Custom Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304

Home / Product / Screw Press Sludge Dewatering Machine / Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304
  • Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304
  • Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304
  • Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304
  • Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304

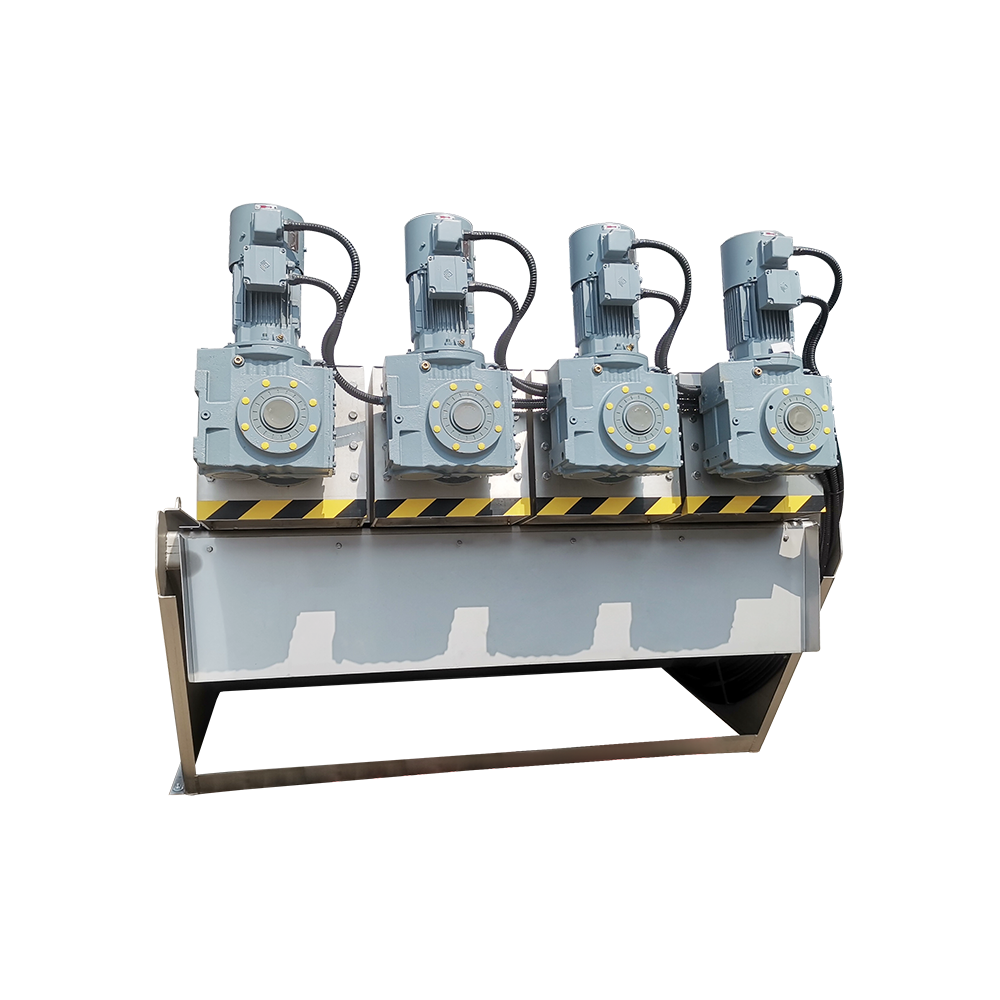

Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304

The environmentally friendly spiral screw sludge dewatering machine is designed for industrial and municipal sludge treatment. It adopts efficient spiral extrusion technology to achieve rapid solid-liquid separation. The equipment does not require chemical agents, operates with low energy consumption, and meets green production standards. The unique spiral shaft structure with adjustable gap ensures a dehydration efficiency of more than 95% and a processing capacity of 5-20m³/h. The whole machine is made of 304 stainless steel, which is corrosion-resistant, easy to maintain, and occupies a small area. It is suitable for multiple scenarios such as printing and dyeing, chemical industry, and municipal administration.

Contact Us Download
QXDL-304 Waste Water Treatment Eco-friendly
Spiral Screw Sludge Dewatering
Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine
120-240kg/hDry Sludge
3.75kWTotal Power
2100kgWeight
4000mmLength
2050mmWidth
QXDL-304 Spiral Screw Sludge Dewatering Machine
Product Introduction

The Waste Water Treatment Eco-friendly Spiral Screw Sludge Dewatering Machine QXDL-304 is a high-capacity automatic dewatering unit engineered for continuous operation in large-scale municipal and industrial wastewater facilities. This system features an extended screw shaft with progressive pitch reduction from 160mm to 50mm, generating mechanical compression up to 0.9 MPa. The advanced ring stack design incorporates 40 percent more filtration surface area compared to standard models, enabling processing of 120-240 kg/h dry solids with feed concentrations ranging from 0.5 to 6 percent. The integrated torque-based control system with VFD drive automatically adjusts screw speed and back-pressure, maintaining consistent cake dryness of 22-32 percent DS across varying feed conditions. Self-cleaning differential motion between moving and fixed rings eliminates filter cloth blinding and reduces maintenance requirements.

Core Advantages
◈
High Capacity Throughput
Processes 120-240 kg/h dry solids with feed sludge concentrations up to 6 percent, suitable for large municipal and industrial plants.
◈
Energy Efficient Operation
Total power consumption of 3.75 kW with low-speed operation (1.5-5 RPM) results in energy savings of 70 percent compared to centrifuge systems.
◈
Zero Clogging Design
Self-cleaning ring stack eliminates filter cloth blinding, reducing maintenance frequency and eliminating high-pressure backwash requirements.
◈
Automated Process Control
VFD-driven torque control with Modbus RTU communication enables remote monitoring and automatic adjustment to feed variations.
Product Features
▸
Extended Compression Zone: 2400mm effective length with progressive pitch reduction generates pressure up to 0.9 MPa for optimal cake dryness.
▸
High-Torque Drive System: Heavy-duty helical gear motor with integrated torque limiter and VFD speed control from 1.5 to 5 RPM.
▸
Enhanced Self-Cleaning Rings: Moving ring design with optimized clearance profile reduces clogging by 45 percent compared to conventional designs.
▸
Pneumatic Back-pressure Control: Automatically regulated discharge cone maintains consistent compression force across varying feed conditions.
▸
SCADA Integration Ready: Modbus RTU communication protocol with alarm outputs for remote monitoring and fault detection.
▸
Corrosion Resistant Construction: All contact parts fabricated from SS304 with optional SS316L for aggressive chemical environments.
Technical Specifications
Equipment ModelQXDL-304
Dry Sludge Capacity120-240 kg/h
Dimensions (L×W×H)4000 × 2050 × 1750 mm
Machine Weight2100 kg
Total Power3.75 kW
Screw Speed1.5-5 RPM (VFD)
Max Pressure0.9 MPa
MaterialsSS304 / SS316L
Drive TypeHelical gear motor with torque limiter
Control InterfaceTouch panel with Modbus RTU
Application Scenarios
⌂ Municipal wastewater treatment plants
⌂ Food and beverage processing
⌂ Brewery and distillery effluent
⌂ Pharmaceutical fermentation residues
⌂ Chemical industry sludge
⌂ Pulp and paper mill wastewater
⌂ Biogas plant digestate
⌂ Textile and dyeing industry
Frequently Asked Questions
Q What feed sludge concentration is required for optimal operation? +
The QXDL-304 operates effectively with feed sludge concentrations ranging from 0.5 to 6 percent solids. For optimal performance and to achieve 22-32 percent DS cake, a feed concentration of 2-4 percent is recommended. Lower concentrations may require reduced throughput or increased polymer dosing to maintain cake dryness.
Q How does the self-cleaning ring stack prevent clogging? +
The moving rings are driven by friction from the rotating spiral shaft, creating a continuous differential motion against the fixed rings. This shearing action dislodges trapped solids and prevents material accumulation. The self-cleaning mechanism eliminates the need for high-pressure backwash systems and reduces water consumption by up to 90 percent compared to conventional designs.
Q What maintenance intervals are required for the ring stack? +
Ring stack inspection should be performed every 2,000 operating hours. Individual ring segments with clearance exceeding 0.4mm should be replaced. Under normal operating conditions with non-abrasive sludge, the ring stack provides 15,000-18,000 hours of service life. Complete ring set replacement is recommended when more than 30 percent of rings exceed wear limits.
Q Can this machine be integrated with existing control systems? +
Yes. The QXDL-304 features Modbus RTU communication protocol, enabling seamless integration with SCADA systems and existing plant control networks. The unit provides real-time torque, speed, and runtime data, with alarm outputs for fault detection and remote diagnostics.
Operational Notes & Safety Precautions
⚠ Disconnect power supply before opening inspection ports or performing maintenance.
⚠ Do not exceed maximum back-pressure of 0.9 MPa to prevent ring stack damage.
⚠ Lubricate drive chain every 500 operating hours with food-grade grease.
⚠ Verify torque limiter calibration annually; slip torque set to 110 percent of motor rating.
⚠ Install upstream screening (2mm mesh) to prevent foreign object ingress.
⚠ Ensure proper electrical grounding with resistance below 10 ohms.
Yangzhou Qinxin Environmental Protection Technology Co., Ltd.
Industry and trade integration · AAA contract-oriented · ISO 9001/14001/45001 · Global export to Southeast Asia

Equipment Model

 QXDL-304

Dry Sludge Treatment Capacity

120-240 Kg/h

Equipment Dimensions

 L4000mm × W2050mm × H1750mm

Machine Weight

 2100kg

Total Power Consumption

3.75 kW
