Custom Expression Press Solid-Liquid Separation Sludge Separator QX-60T

Home / Product / Solid-Liquid Separator / Expression Press Solid-Liquid Separation Sludge Separator QX-60T
  • Expression Press Solid-Liquid Separation Sludge Separator QX-60T
  • Expression Press Solid-Liquid Separation Sludge Separator QX-60T
  • Expression Press Solid-Liquid Separation Sludge Separator QX-60T
  • Expression Press Solid-Liquid Separation Sludge Separator QX-60T

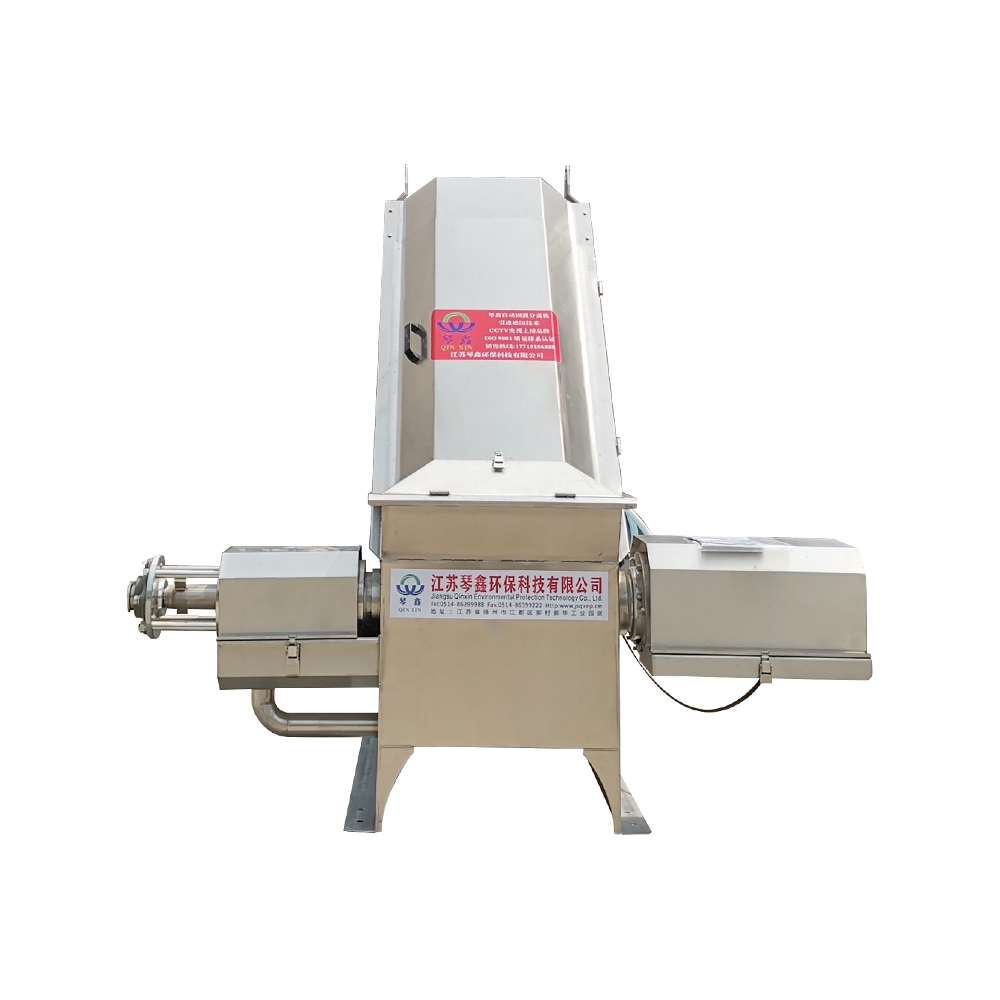

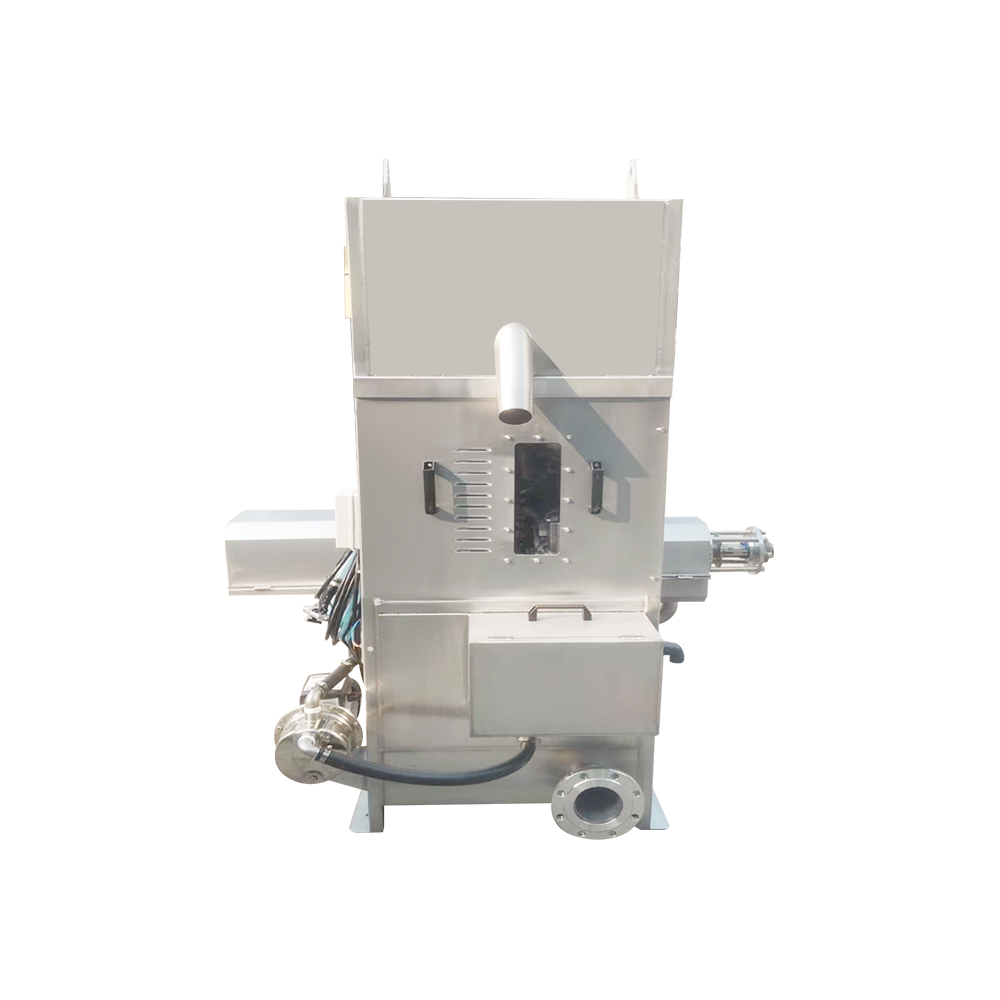

Expression Press Solid-Liquid Separation Sludge Separator QX-60T

The QX-60T is a high-efficiency sludge separator designed for solid-liquid separation in industrial, municipal and agricultural wastewater treatment. It uses advanced pressing technology to effectively dewater sludge, reducing volume and water content for easy disposal or recycling. With a daily processing capacity of 60 tons, it is suitable for medium-scale operations. Key features include low energy consumption, automated operation and durable stainless steel construction. The QX-60T is suitable for food processing, chemical plants and sewage treatment. It is compact, user-friendly and provides high-performance dewatering with very low residual moisture.

Contact Us Download
QX-60T Expression Press Solid-Liquid Separator
Expression Press Solid-Liquid Separation Sludge Separator
Progressive mechanical dewatering · High reduction ratio
5-10
m³/h
Treatment Capacity
340
kg
Machine Weight
3.775
kW
Total Power
2010
mm
Length

The Expression Press Solid-Liquid Separation Sludge Separator is an advanced industrial filtration system engineered for the mechanical dewatering of high-moisture sludge. This equipment utilizes a progressive physical compression mechanism to extract liquid phases from organic and inorganic slurry, facilitating significant volume reduction for downstream disposal or secondary processing.

Equipment Features
Initial filtration utilizes gravity of water flow with no energy consumption; compression part has low power requirement, minimal energy usage.
Large single-unit water processing capacity.
Less prone to clogging and easy to clean — automatic screen cleaning function.
Entire machine stainless steel: high mechanical strength, no deformation, long lifespan.
Automatic detection: full water level activation, filtration, compression, screen cleaning during shutdown.
Gear-type reverse cleaning mechanism — no consumable parts (steel ropes or electrical components), renewable use.
Technical Principles
Unlike conventional centrifugal methods, the expression press technology applies direct mechanical force to the material bed. This process effectively overcomes the capillary forces holding moisture within the sludge structure. The internal architecture consists of a high-strength filtration chamber and a precision-engineered screw extrusion system, ensuring consistent cake dryness and high filtrate clarity across continuous operation cycles.
  • Continuous Automated Operation: 24-hour industrial integration with minimal manual intervention.
  • Low Energy Consumption: Optimized torque distribution reduces cost per ton.
  • Wear-Resistant Components: Corrosion-resistant alloys for abrasive environments.
  • Variable Pressure Control: Adjustable compression ratios for diverse sludge rheologies.
Technical Specifications
Processing Capacity
5 - 45 m³/h (Slurry Dependent)
Inlet Solids Concentration
15,000 - 50,000 mg/L
Cake Moisture Content
65 - 80%
Main Motor Power
1.5 - 15.0 kW
Material Construction
SUS304 / SUS316L
Primary Application Industries
Food processing wastewater treatment Petrochemical sludge thickening Livestock manure dewatering Pulp and paper mills Textile printing and dyeing facilities
Frequently Asked Questions
1. How does the expression press improve cake dryness compared to standard belt presses?
The Expression Press Solid-Liquid Separation Sludge Separator employs a multi-stage compression zone that increases pressure density incrementally. This specific mechanical configuration allows for the removal of bound water that standard belt or gravity systems cannot extract. Yangzhou Qinxin Environmental Protection Technology Co., Ltd. develops these systems with a focus on maximizing the sludge volume reduction ratio. The R&D team integrates decades of practical experience into screw geometry and filter mesh selection, ensuring users in the chemical and pharmaceutical industries achieve the lowest possible disposal weights.
2. What are the maintenance requirements for a sludge separator in corrosive environments?
Maintenance is minimized through the use of high-grade stainless steel and automated self-cleaning cycles. Routine inspections should focus on the integrity of the filtration seals and the lubrication of the drive assembly. Yangzhou Qinxin Environmental Protection Technology Co., Ltd., a AAA-level contract-oriented and trustworthy enterprise, manufactures its sewage treatment equipment to meet stringent quality management system certifications. Comprehensive technical support is provided for exported equipment to Southeast Asian countries, ensuring stacked screw sludge dewatering machines and solid-liquid separators maintain operational stability in harsh conditions such as leather tanning or brewing wastewater processing.
3. Can this system be integrated with existing PAM dosing units?
Yes, the separator is fully compatible with PAM integrated dosing devices to optimize flocculation before the expression stage. Yangzhou Qinxin Environmental Protection Technology Co., Ltd. specializes in the sales and R&D of full-spectrum environmental protection equipment, including sludge low-temperature drying systems and integrated dosing units. By sourcing from a single sewage treatment equipment supplier in China, municipal and industrial clients benefit from synchronized control systems and optimized chemical consumption, backed by occupational health and safety management system certifications.
Yangzhou Qinxin Environmental Protection Technology Co., Ltd.
Industry and trade integration · AAA contract-oriented · ISO certified · Global export

Equipment Model

 QX-60T

Hourly Wastewater Treatment Capacity

 5-10m³

Equipment Dimensions

 L2010mm * W1600mm * H1850mm

Machine Weight

 340kg

Total Power Consumption

 3.775kW
