We are a manufacturer of high quality environmental protection equipment in China.

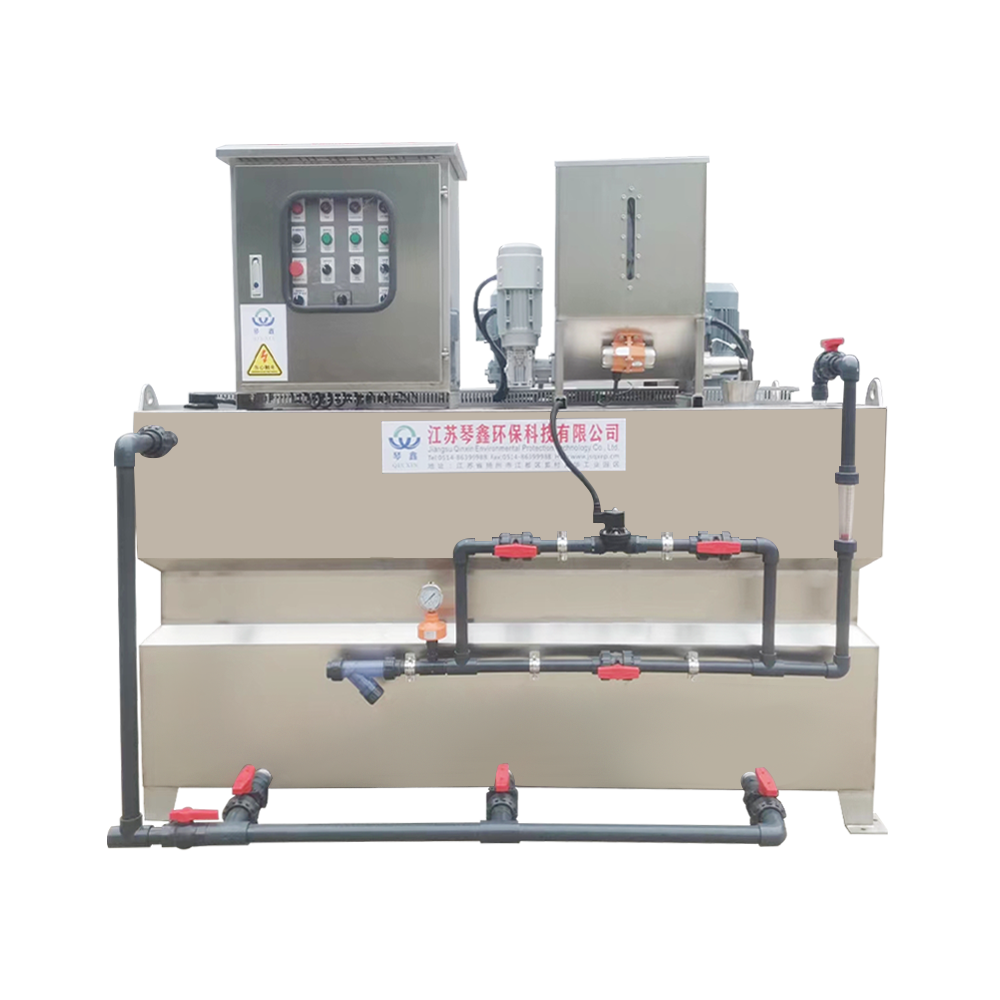

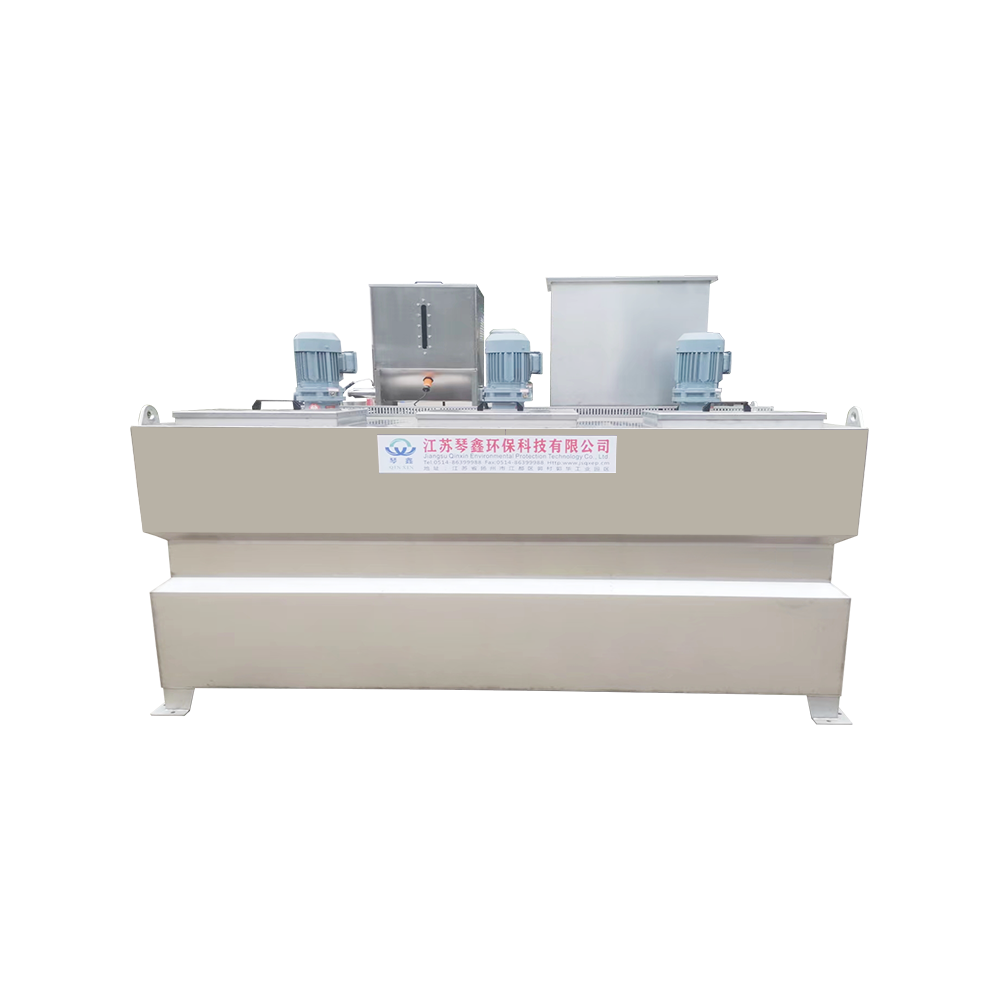

The integrated powder polymerization preparation unit variable frequency feeding device is an advanced industrial automation system designed for accurate and efficient material feeding in powder polymerization processes. It integrates variable frequency drive (VFD) technology to dynamically adjust the feeding speed to ensure accurate feeding of raw materials such as monomers, initiators and additives. The machine can be adjusted according to real-time process needs. The compact modular design simplifies installation and maintenance, and the programmable logic controller (PLC) can be seamlessly integrated with a wider range of production control systems. Ideal for the chemical, pharmaceutical and polymer industries.
Equipment Advantages:
1. Integrated automatic dosing, dissolution, and addition, fully automatic operation, three-in-one compartment (pre-mixed tank, homogenization maturation tank, and solution storage tank) for continuous preparation, easy operation and maintenance, and low labor cost.
2. The precise dosing device has accurate measurement, controlled by a variable frequency drive, allowing for easy adjustment of the feed rate, with a wide range of prepared chemical concentrations.
3. Equipped with liquid level detection and flow control, it comes with a level gauge, electric heating, and vibrator, offering a high level of intelligence. The mixer has a unique structure with an appropriate speed, ensuring the homogenization of the solution without damaging the polymer molecular chains.
|
Equipment Model |
QXYTH-2000L |
|
Dissolving Tank Dimensions |
L2000mm * W1200mm * H1000mm |
|
Machine Weight |
530kg |
|
Total Power Consumption |
2.62KW |
The 2000L Integrated Powder Polymerization Preparation Unit is engineered to facilitate large-scale polymer preparation with controlled dosing and homogeneous mixing. Its design supports continuous and batch polymerization processes, providing accurate control over powder dissolution rates and reaction parameters. The unit is applicable in water treatment, chemical synthesis, and specialty polymer production.
Manufactured according to industrial safety and ISO standards, the unit incorporates corrosion-resistant materials, precision pumps, and variable frequency drives. Its modular construction allows for easy integration into existing production lines and supports remote monitoring for process optimization.
This unit is suitable for industrial scenarios requiring controlled polymer preparation:
The unit supports a variety of water-soluble polymers including polyacrylamide, cationic and anionic flocculants, and other specialty polymers. Its dosing and mixing system ensures consistent polymer quality and concentration control.
Variable frequency dosing allows precise adjustment of material feed rates in real-time, reducing material overuse and ensuring homogeneous mixing. This improves reaction consistency, reduces batch-to-batch variation, and lowers operational costs.
Routine maintenance includes checking and calibrating dosing pumps, inspecting agitators for wear, cleaning powder handling components, and verifying sensor accuracy. Regular PLC and electrical system diagnostics are recommended to maintain process reliability.
Products provided by famous enterprises are deeply trusted by users.
Factory Area
Honorary Certificate
Yangzhou Qinxin Environmental Protection Technology Co., Ltd. is China Custom Integrated Powder Polymerization Preparation Unit Variable Frequency Dosing Device QXYTH-2000L Suppliers and Integrated Powder Polymerization Preparation Unit Variable Frequency Dosing Device QXYTH-2000L Company. This is an enterprise that combines industry and trade and is committed to research and development, production, and sales of environmental protection equipment, Our company is mainly engaged in Integrated Powder Polymerization Preparation Unit Variable Frequency Dosing Device QXYTH-2000L, stacked screw sludge dewatering machines, PAM integrated dosing devices, sludge low-temperature drying systems, solid-liquid separators, other sewage treatment equipment, mainly serving municipal, food, petrochemical, aquaculture, papermaking, leather, brewing, printing and dyeing, chemical, pharmaceutical, medical and other industries. Adhering to many years of practical experience and research and development in the production of environmental protection equipment, the company is AAA-level contract-oriented and trustworthy and has obtained a number of patents and quality management system certifications, environmental management system certifications, and occupational health and safety management system certifications.
Our products have obtained, include EC-Type Examination Certificate, BV, MODE, DNV, GL Certificate, EC Attestation of Conformity, Certificate of Type Approval for Marine Product and Lloyd’s Register Quality Assurance.
