Custom Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T

Home / Product / Hydraulic Screen Solid-Liquid Separator / Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T
  • Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T

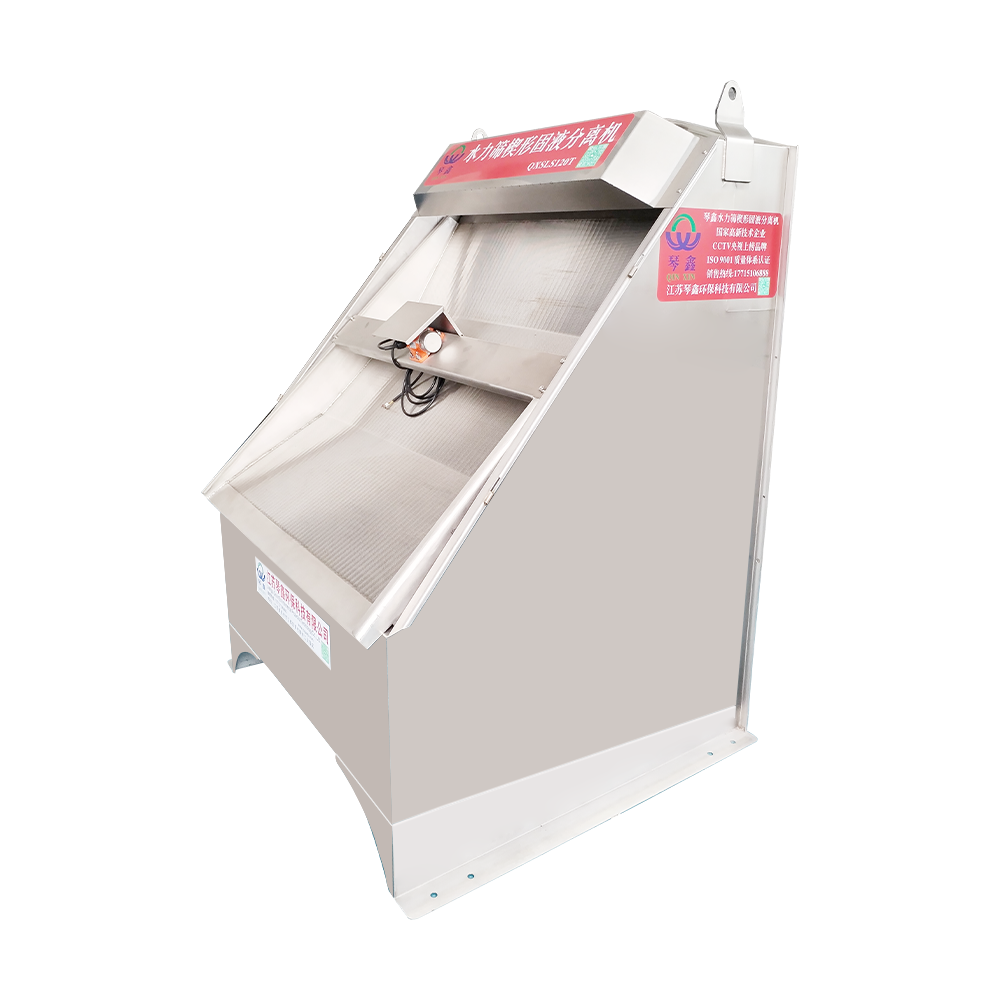

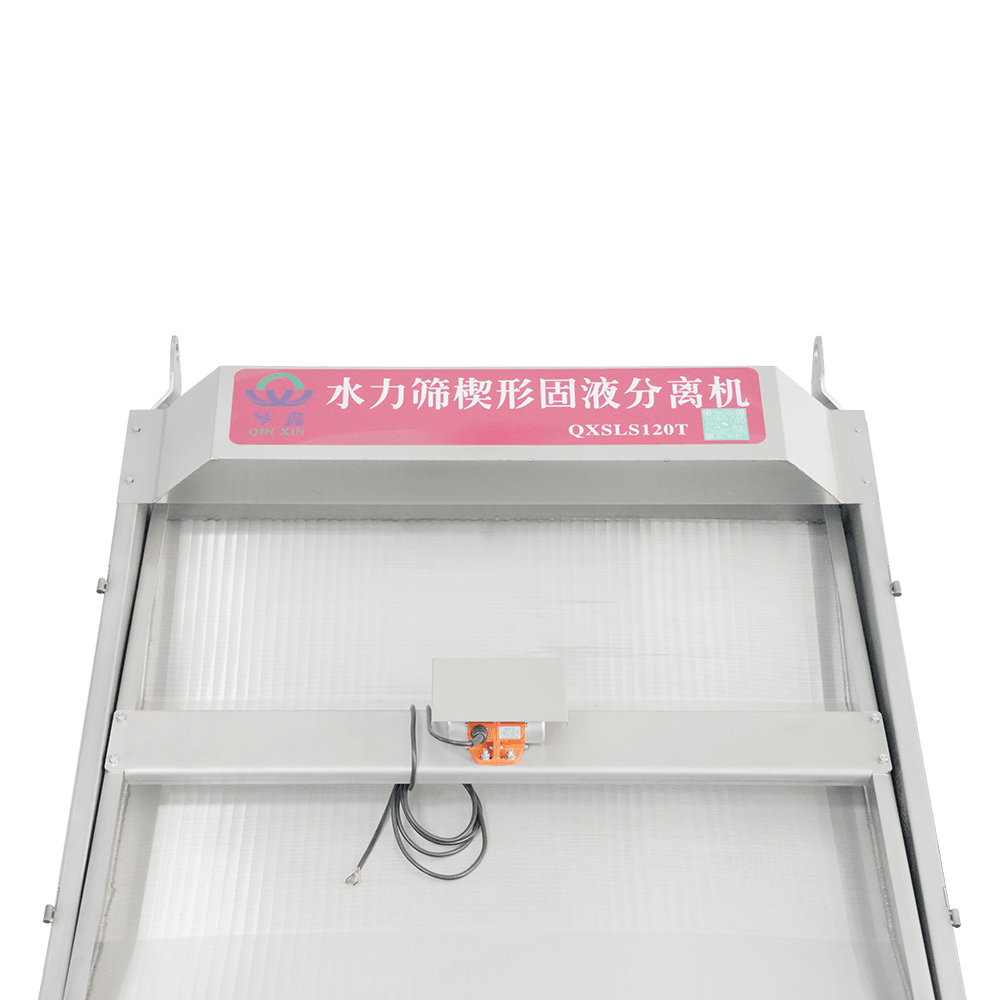

Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator Equipment/Machine QXSLS-120T

The QXSLS-120T is an advanced solid-liquid separator that combines inclined screen filtration and hydrocyclone technology for efficient dewatering and classification. Designed for mining, wastewater treatment and industrial slurry treatment, the equipment is equipped with a hydraulic system for automated operation and reduced manual intervention. The inclined screen removes coarse particles, while the hydrocyclone separates fine particles through centrifugal force for precise classification. With a processing capacity of 120 tons per hour, the equipment ensures low water content in discharged solids and clear effluent.

Contact Us Download
QXSLS-120T Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator
10-40 m³/h Treatment
300 kg Weight
1310 mm Length
1190 mm Width
1800 mm Height

The Inclined Screen Hydro-Cyclone Hydraulic Solid-Liquid Separator is an engineered solution designed for the efficient removal of suspended solids from high-flow wastewater streams. This equipment integrates hydraulic gravity filtration with an inclined stainless steel screen to achieve preliminary dehydration of organic and inorganic slurries. It is specifically engineered to handle high-water-content materials, such as manure wastewater treatment, biogas residue separation, and industrial process water recovery.

Product Advantages
■
Screen tube extrusion designed for high-concentration wastewater such as manure from deep litter systems, chicken farms, and duck farms. Stably maintains solid moisture content of 65% during operation — incomparable to general screw extrusion.
■
Small-scale pig manure dry-wet separator water-cutting screen is self-produced with gap of 0.3-0.5mm, ensuring thorough filtration, easiest subsequent treatment, and longest service life.
■
Gear-type reverse cleaning mechanism free from consumables such as steel cables and electrical parts — reusable design.
Technical Operation and Functional Advantages
The system operates on a non-powered hydraulic principle, utilizing the kinetic energy of the fluid to facilitate separation. The wedge wire screen is positioned at a precise inclination, allowing liquid to pass through the gaps while solid particles are retained and slide down the surface via gravity. This gravity-driven separation process significantly reduces energy consumption compared to mechanical centrifugal methods.
  • Clog-Resistant Design: Vibratory motor integration ensures the inclined screen surface remains clear of fibrous materials, maintaining a consistent flow rate.
  • Corrosion Resistance: All contact components fabricated from AISI 304 or 316L stainless steel, providing durability against chemical abrasion in petrochemical and pharmaceutical wastewater applications.
  • Adjustable Solid Concentration: Modular hydro-cyclone hydraulic system allows operators to manage moisture content of discharged solids by adjusting inclination angle and inflow pressure.
Primary Applications
Livestock and Aquaculture: Primary dehydration of pig, cow, poultry manure for organic fertilizer raw materials
Food Processing and Brewing: Removal of spent grains, vegetable skins, pulp from wash water streams
Pulp and Paper: Recovery of fine fibers and debris removal from circulating white water
Municipal Sewage: Pre-screening of grit and large suspended solids at headworks of sewage treatment plants
Technical Specifications — Series Comparison
Model Parameter QX-IS600 QX-IS1000 QX-IS1200
Processing Capacity (m³/h) 15 - 25 30 - 45 50 - 70
Screen Slot Width (mm) 0.25 - 1.0 0.25 - 1.0 0.3 - 1.5
Main Motor Power (kW) 0.75 - 1.5 1.5 - 2.2 2.2 - 3.0
Material Construction SUS304 Stainless Steel SUS304/316L SUS304/316L
Inlet Connection (mm) DN100 DN150 DN200
Installation and Maintenance Requirements
To ensure optimal hydraulic separation efficiency, the equipment must be installed on a level concrete foundation. Periodic inspection of the wedge wire screen is necessary to prevent mineral scaling. The hydro-cyclone effect depends on maintained inlet pressure, which should be monitored via integrated gauges. Because the system utilizes fewer moving parts than a screw press dehydrator, the maintenance interval for bearings and seals is significantly extended.
Frequently Asked Questions
Q1
What are the advantages of using an inclined screen separator over a traditional screw press for high-volume wastewater?
The inclined screen hydraulic separator excels in scenarios involving high flow rates with relatively low solid concentrations (below 5%). Unlike sludge dewatering machines that require high torque, this equipment utilizes gravity filtration, which lowers operational costs and reduces mechanical wear. Yangzhou Qinxin Environmental Protection Technology Co., Ltd. designs these systems to serve as a pre-treatment stage, significantly reducing the load on stacked screw sludge dewatering machines and PAM integrated dosing devices. Equipment is widely exported to Southeast Asian countries, providing a reliable solution for municipal and food industry sewage treatment.
Q2
How does the equipment handle different types of industrial slurry and chemical corrosion?
Material selection is critical for longevity. Yangzhou Qinxin Environmental Protection Technology Co., Ltd. utilizes AAA-level contract-oriented manufacturing processes, ensuring all solid-liquid separators meet rigorous quality management system certifications. Systems are routinely applied in petrochemical, tanning, and printing and dyeing industries where pH levels fluctuate. For aggressive chemical environments, customized 316L stainless steel configurations are available. Technical team ensures each unit is optimized for specific rheological properties of the client's waste stream, from papermaking fiber recovery to medical waste filtration.
Q3
Can this system be integrated into a fully automated wastewater treatment plant?
Yes. The Hydraulic Solid-Liquid Separator can be seamlessly integrated with sludge low-temperature drying systems and automated dosing units. Yangzhou Qinxin Environmental Protection Technology Co., Ltd. provides comprehensive technical support for system integration. The company focuses on providing sewage treatment equipment that meets occupational health and safety management standards. By choosing these solutions, facilities in brewing, pharmaceutical, and chemical sectors benefit from a dedicated technical force and advanced service awareness that ensures enterprise management process remains efficient and compliant with environmental regulations.
Yangzhou Qinxin Environmental Protection Technology Co., Ltd. | AAA contract-oriented · ISO certified · Industry and trade integration

Equipment Model

 QXSLS-120T

Hourly Wastewater Treatment Capacity

 10-40m³

Equipment Dimensions

 L1310mm * W1190mm * H1800mm

Machine Weight

 300kg
